This innovative device efficiently desalinates seawater and saline groundwater
with salinity concentrations below 32,000 ppm in areas such as islands, ships,
and offshore aquaculture farms, transforming them into drinking, domestic,
agricultural, industrial, and firefighting water.
FilterTech's seawater desalination system utilizes scale-inhibiting polymer
technology to safely purify water free of contaminants and fine particles,
and utilizes renewable energy to maximize energy efficiency.
Based on practicality, environmental friendliness, and energy efficiency,
this system provides essential desalination solutions for a wide range of industries.
Furthermore, it utilizes reverse osmosis (RO) technology to ensure rapid,
clean water purification and boasts cost-effective maintenance and a long service life.
This innovative device efficiently desalinates seawater and saline groundwater
with salinity concentrations below 32,000 ppm in areas such as islands, ships,
and offshore aquaculture farms, transforming them into drinking, domestic,
agricultural, industrial, and firefighting water.
FilterTech's seawater desalination system utilizes scale-inhibiting polymer
technology to safely purify water free of contaminants and fine particles,
and utilizes renewable energy to maximize energy efficiency.
Based on practicality, environmental friendliness, and energy efficiency,
this system provides essential desalination solutions for a wide range of industries.
Furthermore, it utilizes reverse osmosis (RO) technology to ensure rapid,
clean water purification and boasts cost-effective maintenance and a long service life.
Product Features
Special Features
It is an optimized solution that is practical, eco-friendly, and energy efficient.
Extending equipment life
Extended service life by suppressing scale
formation and corrosion.
Optional production possible
Simultaneous production and selective production
of domestic water and drinking water are possible
depending on the purpose of use.
Renewable energy operation
Household AC220V/60Hz, power consumption
less than 5kw/h, renewable energy operation
possible.
Household AC220V/60Hz, power consumption
less than 5kw/h, renewable energy operation
possible.
Reduce maintenance costs
Reduce maintenance costs by significantly
increasing filter replacement intervals
by suppressing scale formation.
Reduce maintenance costs by significantly
increasing filter replacement intervals
by suppressing scale formation.
Application of intelligent water
management system
Introduction of an intelligent water management
system to predict water demand, supply water,
and notify users when water needs to be replaced.
Easy to move and install
Easy to move and install due to its compact size,
ensuring mobility in case of emergency
water supply
Main Uses
Resolving drinking water and household water shortages in island regions
Supply of drinking water and domestic water to various ships and yachts
For military use, emergency water supply, and marine housing use
Resolving drinking water and household water shortages in island regions
Supply of drinking water and domestic water to various ships and yachts
For military use, emergency water supply, and marine housing use
Process and Procedure
Conceptual design
We design optimal system processes that reflect our customers' requirements.
Conceptual design
We design optimal system processes that reflect our customers' requirements.
Production plan
We share design reliability testing and equipment CEPE, maintenance costs,
and service procedures in advance.
Technical review We work closely with our clients to conduct customized technical
reviews prior to project execution.
Equipment manufacturing
Construction is based on 3D drawings to ensure high production stability.
Equipment manufacturing
Pre-factory testing minimizes on-site labor and resource waste.
Experts are dispatched directly to perform installation and commissioning.
Aftercare and maintenance We proactively check for system abnormalities
and provide efficient maintenance through regular customer contact and on-site visits.

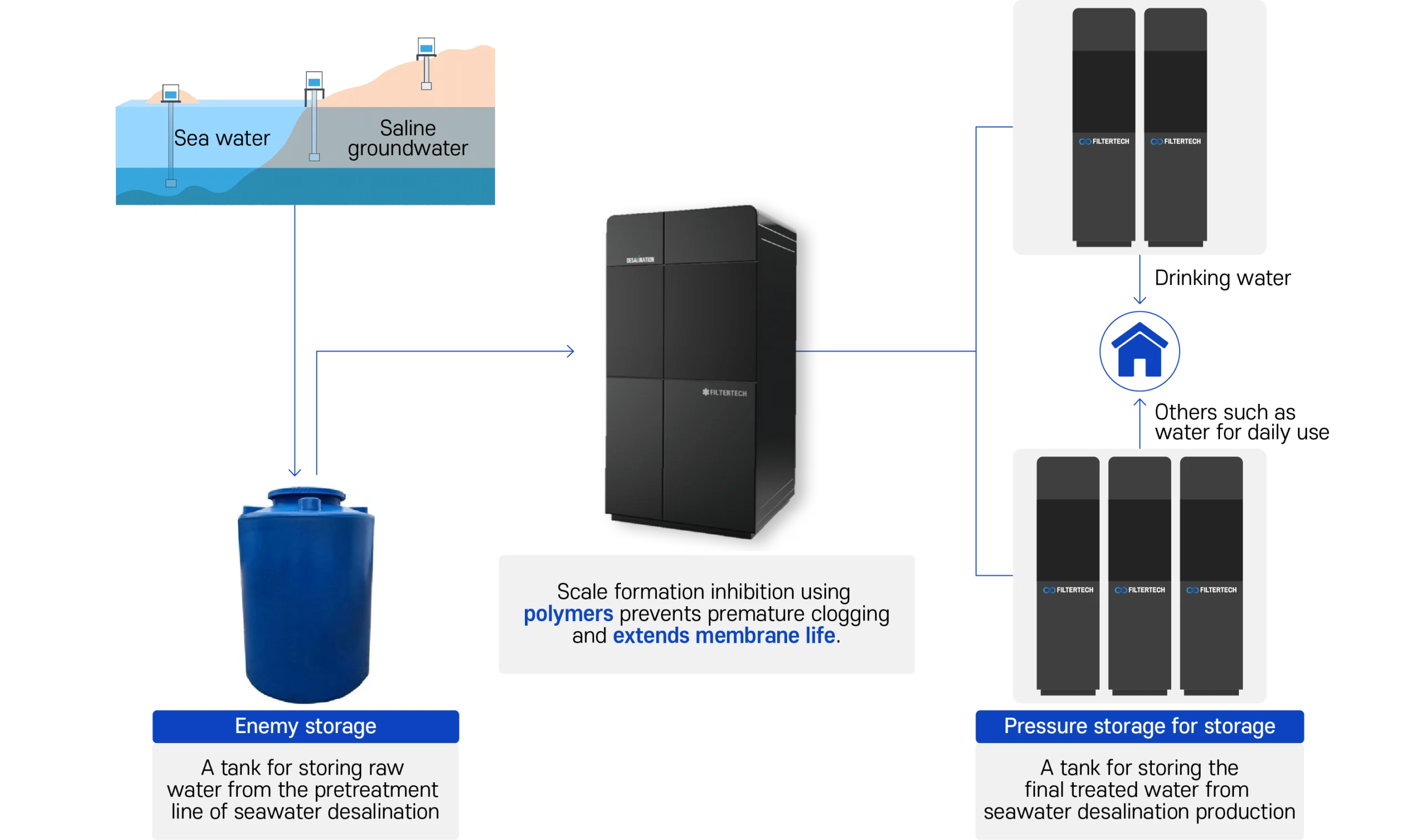

Detailed drawing of a small seawater desalination system

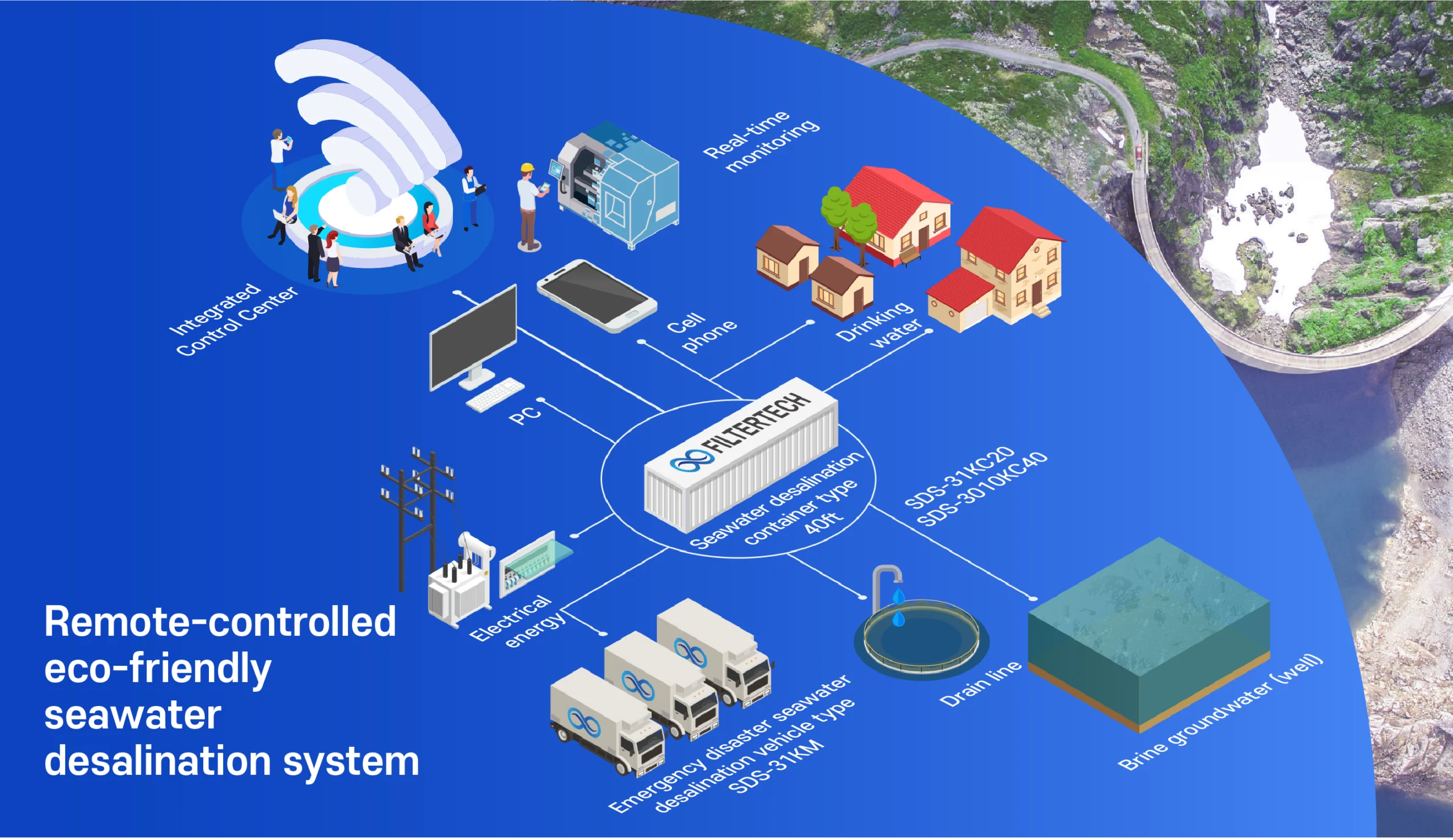

Seawater desalination system container type
Seawater maximum 35,000 ppm → freshwater minimum 50 ppm
SWRO(Sea Water-RO) for domestic water production, BWRO(Brackish Water-RO) for drinking water production.
Equipped with Filtertech's exclusive, specialized professional filter.
Multiple pumps(two in one) ensure operational safety and enable a restart system through remote monitoring in case of emergency.(2-shift operation, alternate operation, and continuous production through the availability of the other pump in the event of a pump failure, with an emergency remote restart function)
Remote restart function based on remote monitoring of operating status in emergency situations.(such as lightning strikes)
Remote monitoring of filter lifespan for efficient management and reduced maintenance costs.

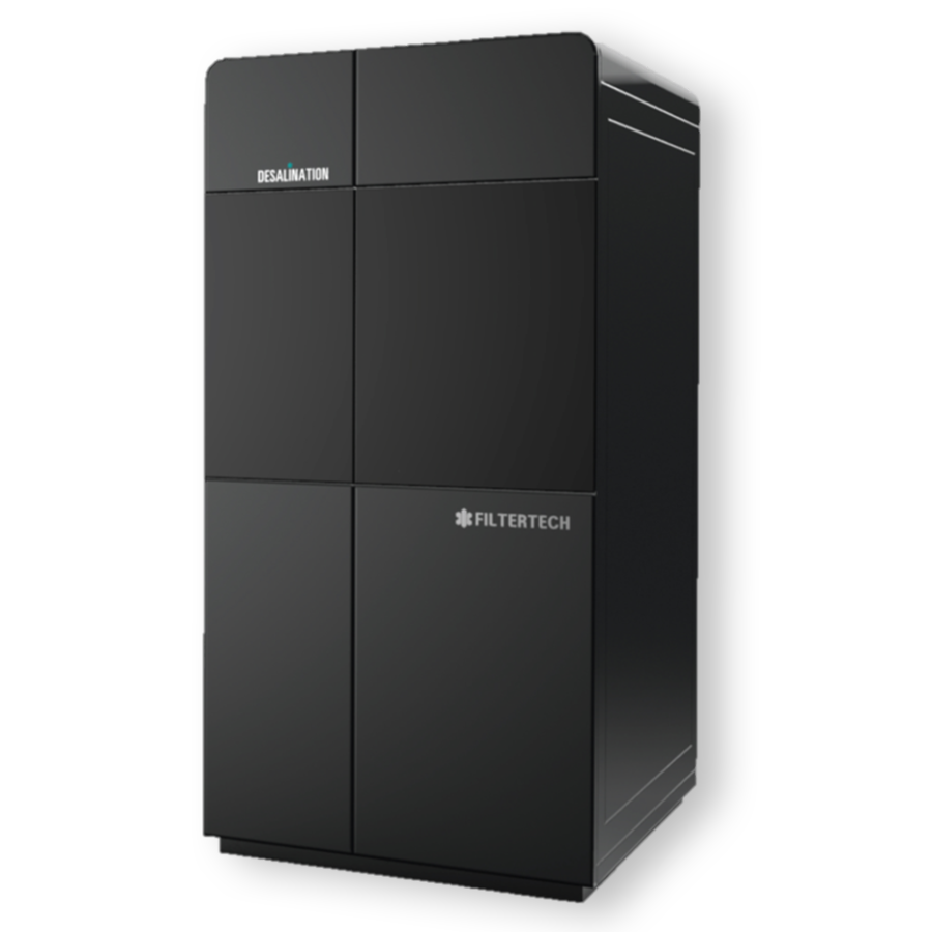

Product Composition And Specifications
Freshwater recovery rate
15~30%
Production flow
1 ton of basic drinking water per day
3 ton of basic domestic water per day
Salt removal rate
More than 99.7%
Everyone
AC22V/60HZ,
Power consumption less than 5kW/h
Intake pressure
2~3bar
Size
820(w) X 1.050(d)
X 1,720(h)mm
SDS-31KM
Mobile seawater desalination
system Emergency disaster
vehicle type
4.8 tons of domestic water per day
2 tons of drinking water per day
This vehicle-type seawater
desalination system
is optimized for emergency
support in situations of
water shortage or disaster,
and can be used to locally
produce and transport
drinking water and
domestic water in island
regions using surface water
(seawater)
SDS-31K
Installed seawater
desalination system indoor installation
4.8 tons of domestic water per day
2 tons of drinking water per day
This indoor, above-ground
seawater desalination system
pumps saline groundwater
from island regions
to produce drinking
water for domestic use.
It can produce and store fresh
water for use at any time.
SDS-31KC20
Fixed seawater
desalination system 20ft container type
10 tons of drinking water per day
SDS-3010KC40
Fixed seawater
desalination system 40ft container type
20 tons of drinking water per day
This vehicle-type seawater
desalination system
is optimized for emergency
support in situations of
water shortage or disaster,
and can be used to locally
produce and transport
drinking water and
domestic water in island
regions using surface water
(seawater)
This indoor, above-ground
seawater desalination system
pumps saline groundwater
from island regions
to produce drinking
water for domestic use.
It can produce and store fresh
water for use at any time.
This seawater desalination system,
installed in a container on the ground,
pumps saline groundwater from island
regions to produce drinking water for domestic use.
It can produce, store, and use freshwater at any time.
Certificate
We hold patents and certificates related to seawater desalination, including Patent No. 10-1845674, Patent No. 10-2005147, Incheon Metropolitan City Health and Environment
Research Institute Water Quality Test Report, Jeollanam-do Health and Environment Research Institute
Water Quality Test Report, and Korea Institute of Energy Research Energy Consumption High Efficiency Test Report.
We hold patents and certificates related to seawater desalination, including Patent No. 10-1845674, Patent No. 10-2005147, Incheon Metropolitan City Health and Environment
Research Institute Water Quality Test Report, Jeollanam-do Health and Environment Research Institute
Water Quality Test Report, and Korea Institute of Energy Research Energy Consumption High Efficiency Test Report.
