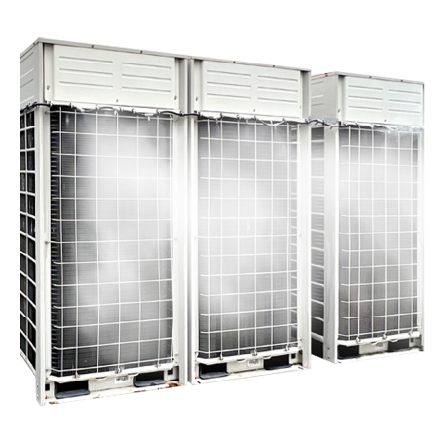

Outdoor Unit Coolingfog System

This spray device sprays artificial fog with particles 1-80㎛
in size at high pressures exceeding 60 bar.
During the vaporization process, the artificial fog rapidly lowers the ambient
temperature by an average of 5-22.6℃, simultaneously removing particulate
matter from the air, reducing fine dust concentration by more than 40%.
It can be used for quarantine and disinfection in crop greenhouses, farmland,
poultry farms, pig pens, and livestock sheds by replacing chemicals.
It also holds various patents and certifications, including KC certification,
KCL test certification, performance certification, ICT certification, and Q-mark.
As a technology-developed product with proven performance, it is registered
as a priority purchase item by the Public Procurement Service.

This spray device sprays artificial fog with particles 1-80㎛ in size at high pressures exceeding 60 bar. During the vaporization process, the artificial fog rapidly lowers the ambient temperature by an average of 5-22.6℃, simultaneously removing particulate matter from the air, reducing fine dust concentration by more than 40%. It can be used for quarantine and disinfection in crop greenhouses, farmland, poultry farms, pig pens, and livestock sheds by replacing chemicals. It also holds various patents and certifications, including KC certification, KCL test certification, performance certification, ICT certification, and Q-mark. As a technology-developed product with proven performance, it is registered as a priority purchase item by the Public Procurement Service.

Product Features

Maximize cooling efficiency

Improves refrigerant condensation efficiency by lowering the ambient temperature of the outdoor unit heat exchanger.

Extending equipment life

Extended component life by reducing the load on the compressor and fan motor due to overheating.

Power saving effect

Reduced compressor operating time due
to lower outdoor unit temperature,
saving electricity costs.

Reduced compressor operating time due to lower outdoor unit temperature, saving electricity costs.

Ease of installation and versatility

It can be installed with just a small nozzle
and simple piping, making it compatible
with all outdoor units for home,
commercial, and industrial use.

It can be installed with just a small nozzle and simple piping, making it compatible with all outdoor units for home, commercial, and industrial use.

	High-pressure cooling system	Low-pressure cooling system
Quantity	89	37
Power consumption before operation	6,047.0kWh	1,424.5kWh
Power consumption after operation	4,353.0kWh	897.4kWh
Reduced power consumption	1,693.0kWh	527.0kWh
Energy saving rate	28%	37%

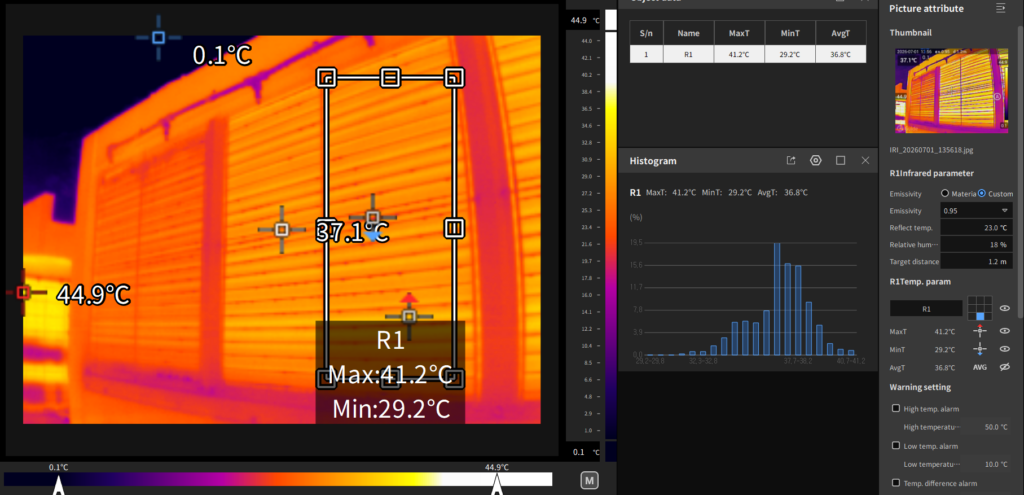

Before using
the cooling system

Before operation 41.2℃

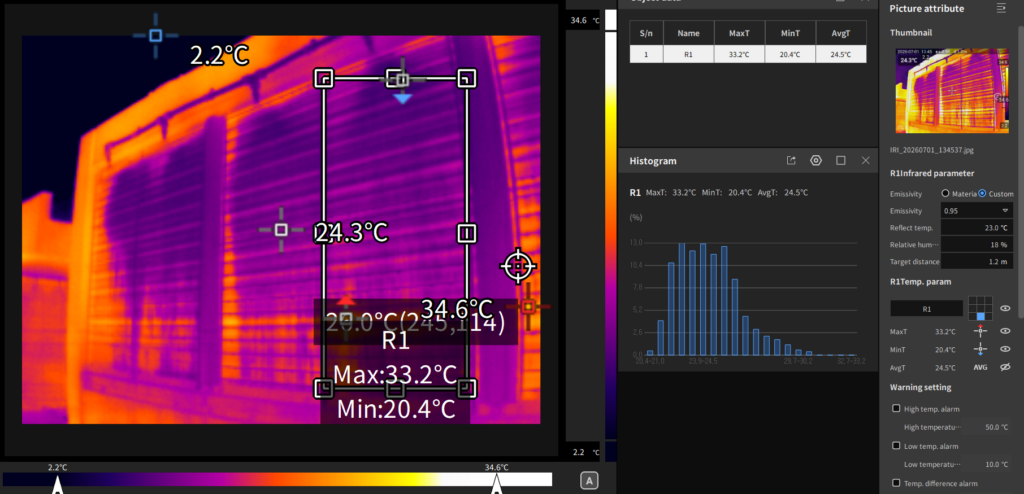

After using
the cooling system

Before operation 20.4℃
(20.8℃ Reduction)

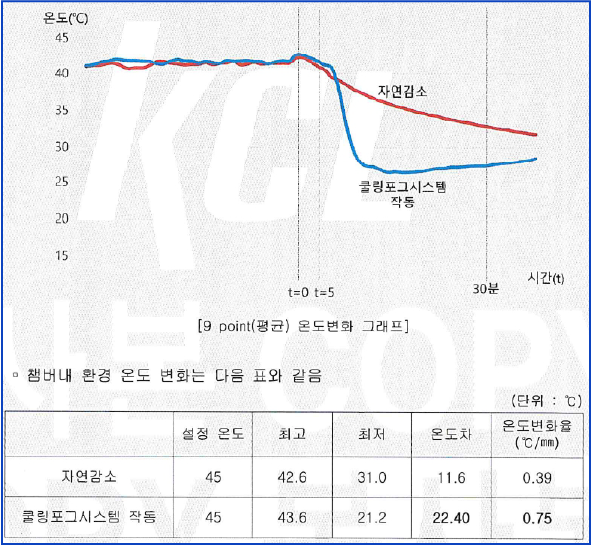

Results of temperature reduction test of
cooling fog system sponsored by KCL
(In the test environment 22.4℃ Reduction)

Installation Image Examples

Certificate

We hold KC certification, Q-Mark, performance certification, ISO environmental/quality management certification,
and KCL test reports for radiant heat reduction, fine dust reduction, and temperature reduction.
We also hold numerous patents related to cooling fog,
including spray nozzles, controllers, easy connectors, and management systems.

We hold KC certification, Q-Mark, performance certification, SO environmental/quality management certification, and KCL test reports for radiant heat reduction, fine dust reduction, and temperature reduction.
We also hold numerous patents related to cooling fog,
including spray nozzles, controllers, easy connectors, and management systems.
