Product

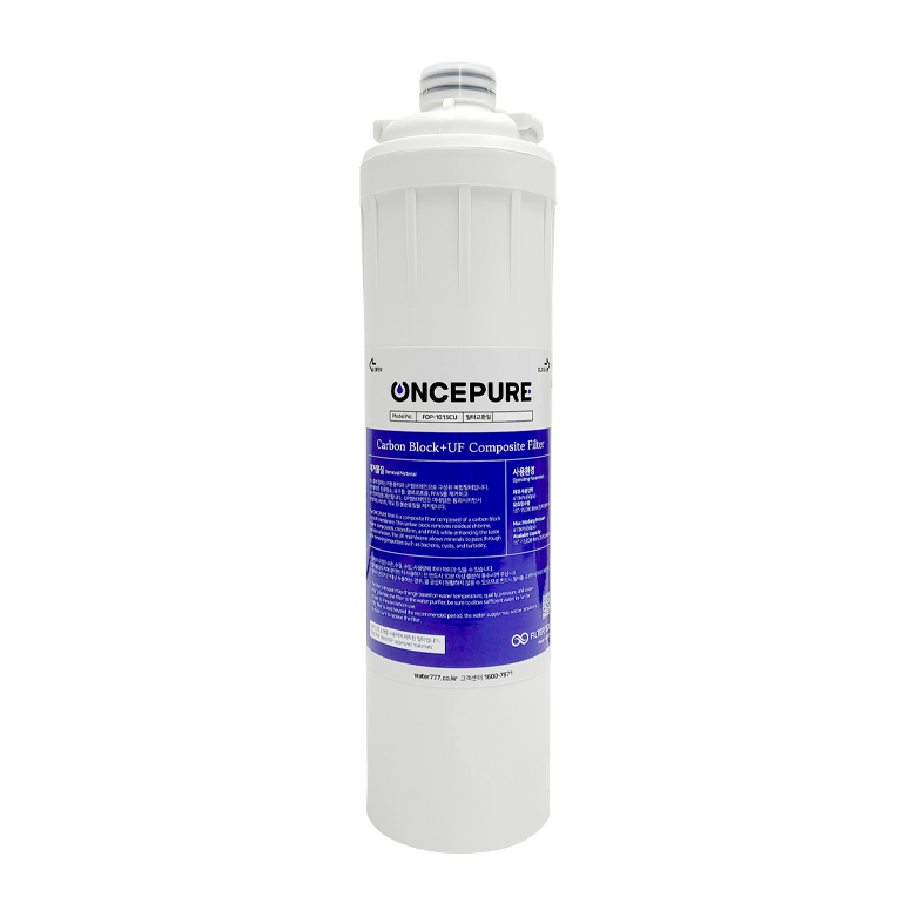

Oncepure

The OnePure Composite Filter is a proprietary, in-house developed product that integrates PP, activated carbon, and CTO functions into a single all-in-one cartridge. It effectively removes rust, chlorine, odors, fine particles, and residual impurities in one step, providing comprehensive filtration performance. Designed as a compact water filtration solution, it can be installed easily without the need for a separate housing, allowing for quick and simple setup. The filter improves the taste and odor of water by adsorbing and eliminating unpleasant smells and chlorine commonly found in tap water. With a simple, housing-free connection design, the OnePure Composite Filter can be conveniently installed in a wide range of applications, including household water purifiers, under-sink systems, and refrigerator water lines, making it a versatile and user-friendly filtration solution.

Product Features

  • Special Features

3-stage UF water treatment system

A precision filtration filter that filters/absorbs
rust, impurities, odors, and chlorine by
configuring PP + carbon block + UF filter
as a single filter system.

A precision filtration filter that filters/absorbs rust, impurities, odors, and chlorine by configuring PP + carbon block + UF filter as a single filter system.

Economic replacement cycle

The composite structure increases filtration efficiency, extending the replacement cycle and reducing filter maintenance costs.

Excellent compatibility

Compatible with a variety of housing and
undersink systems, designed to fit common
10-inch housing specifications.

Compatible with a variety of housing and undersink systems, designed to fit common 10-inch housing specifications.

Easy installation

Easy to install with direct connection structure without separate housing or tools.

  • Main Uses

Quickly and hygienically clean small tools such as bar spoons, frothers, and milk steam tips used in cafes, coffee shops, and kitchen counters.

household sink
water purifier

Cafes, Restaurants

Hospital,
Research Lab

Small Industrial
Water Purification
Systems

household sink water purifier

Cafes, Restaurants

Hospital, Research Lab

Small Industrial Water Purification Systems

Product Composition And Specifications

Model Name FOP-1015UF
Operating Pressure 1~7kgf/㎠
Product Size 15inch(380mm) Φ 100x381
Operating Temperature 4-40°C Cold Water Use Only
Material PP, ABS
Filtration Method External pressure filtration, carbon block adsorption, UF precision filtration
Pore Size Nominal 2.5μm
Effective Water Purification Capacity Approximately 3,600L (10L per day for 12 months)

*The amount of purified water may vary depending on water quality.

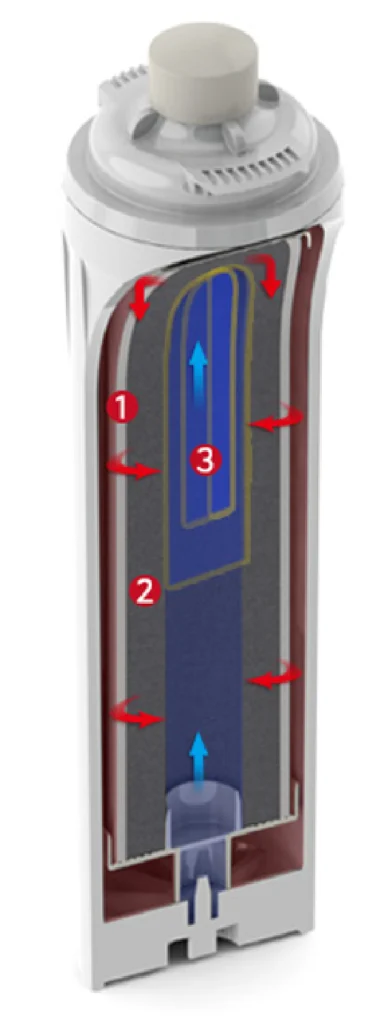

  • Oncepure Filter Filtration Method
1. As a pretreatment filter, it removes 5-micron suspended particles from raw water,
thereby improving carbon removal performance.
1.
As a pretreatment filter, it removes 5-micron suspended particles from raw water, thereby improving carbon removal performance.
2.
Activated carbon adsorption removes residual chlorine, THMs, various organic compounds,
and odors, improves the taste of water, and removes particulate contaminants through pores.
2.
Activated carbon adsorption removes residual chlorine, THMs, various organic compounds, and odors, improves the taste of water, and removes particulate contaminants through pores.
3.
The hollow fiber membrane(UF) is 0.1 micron or smaller and filters out common bacteria and
fine impurities while allowing minerals to pass through, providing fresh water at all times.
3.
The hollow fiber membrane(UF) is 0.1 micron or smaller and filters out common bacteria and fine impurities while allowing minerals to pass through, providing fresh water at all times.

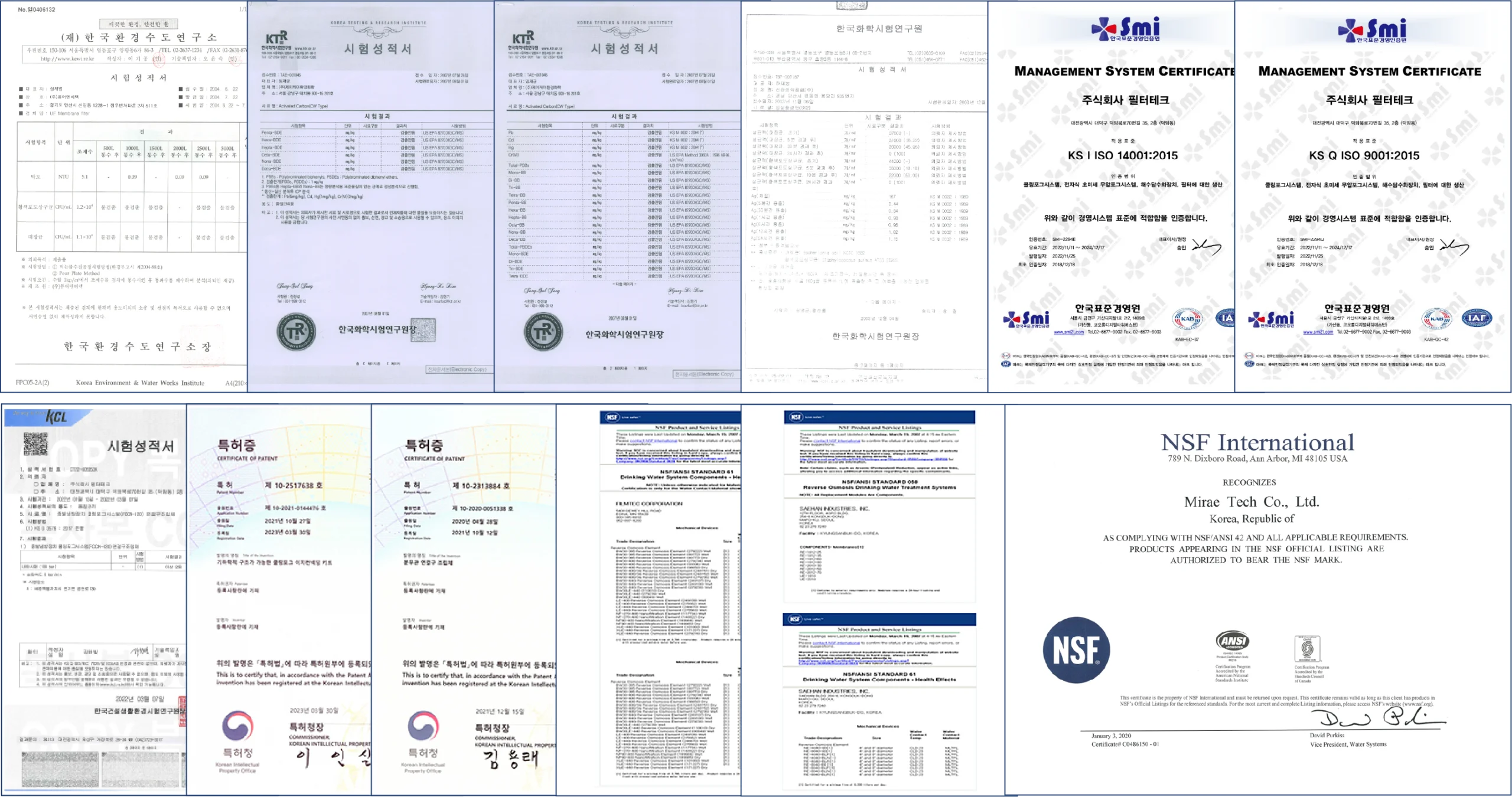

Certificate

We hold patents and certificates related to water treatment filters,
components, and materials, including water purifier filter sedimentation test reports, water purifier filter pretreatment test reports,
water purifier filter hollow fiber membrane test reports, reverse osmosis test reports, post-treatment test reports, NSF certifications,
ISO environmental management system certifications, ISO quality management system certifications, spray pipe connector assembly patents,
cooling fog easy-connecting kit patents, and KCL test reports.
We hold patents and certificates
related to water treatment filters,
components, and materials, including water purifier filter sedimentation test reports, water purifier filter pretreatment test reports, water purifier filter hollow fiber membrane test reports, reverse osmosis test reports, post-treatment test reports, NSF certifications, ISO environmental management system certifications, ISO quality management system certifications, spray pipe connector assembly patents, cooling fog easy-connecting kit patents, and KCL test reports.
